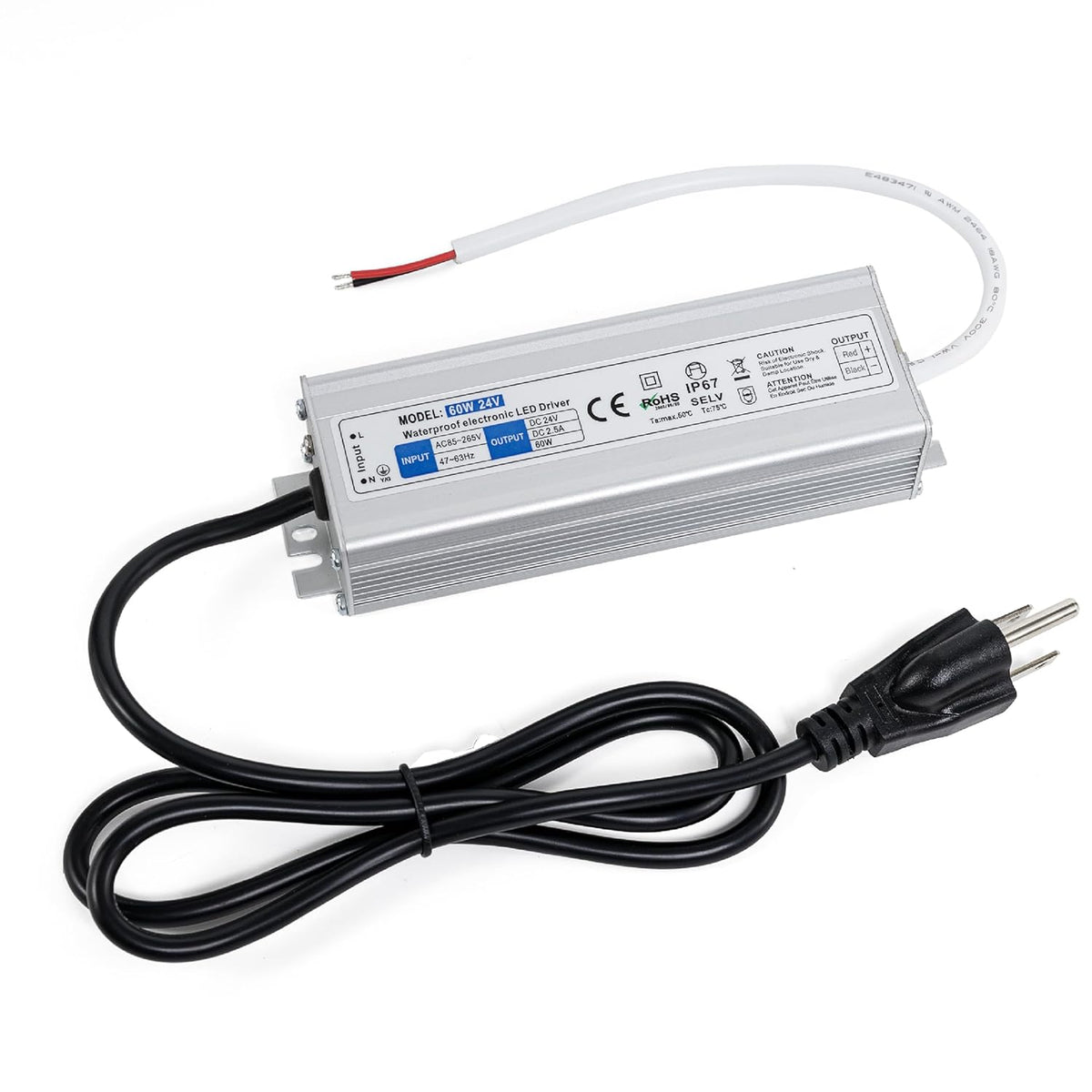

60W 24V LED Power Supply 2.5A with 3-Prong Plug AC 100-260V to 24V DC IP67

60W 24V LED Power Supply Transformer (2.5A, IP67 Waterproof)

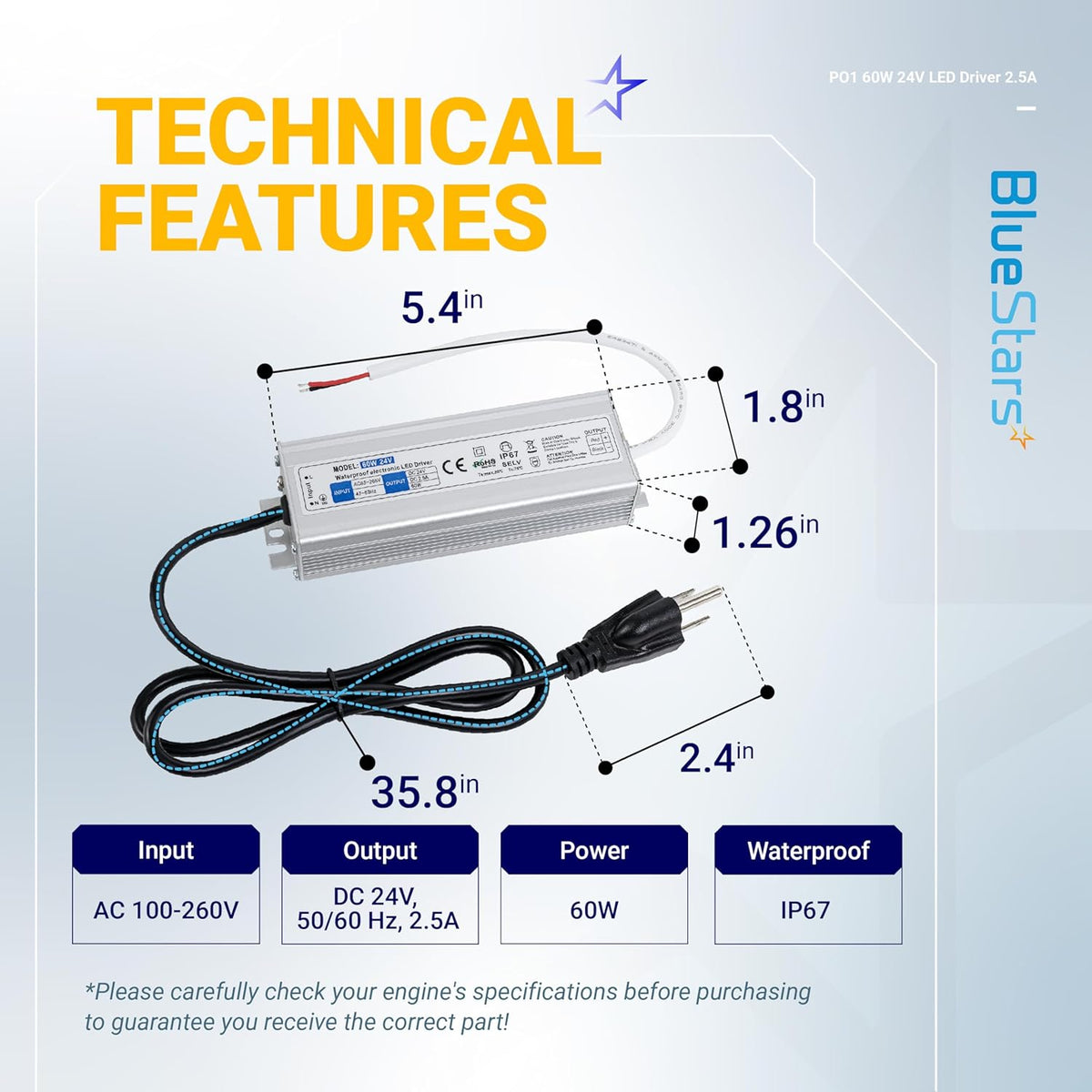

Key Features

• Power Output: 60W
• Output Voltage: 24V DC (Constant)
• Output Current: 2.5A
• Input Voltage: 90-260V AC, 50/60Hz
• Ingress Protection: IP67 rated for dust and water resistance

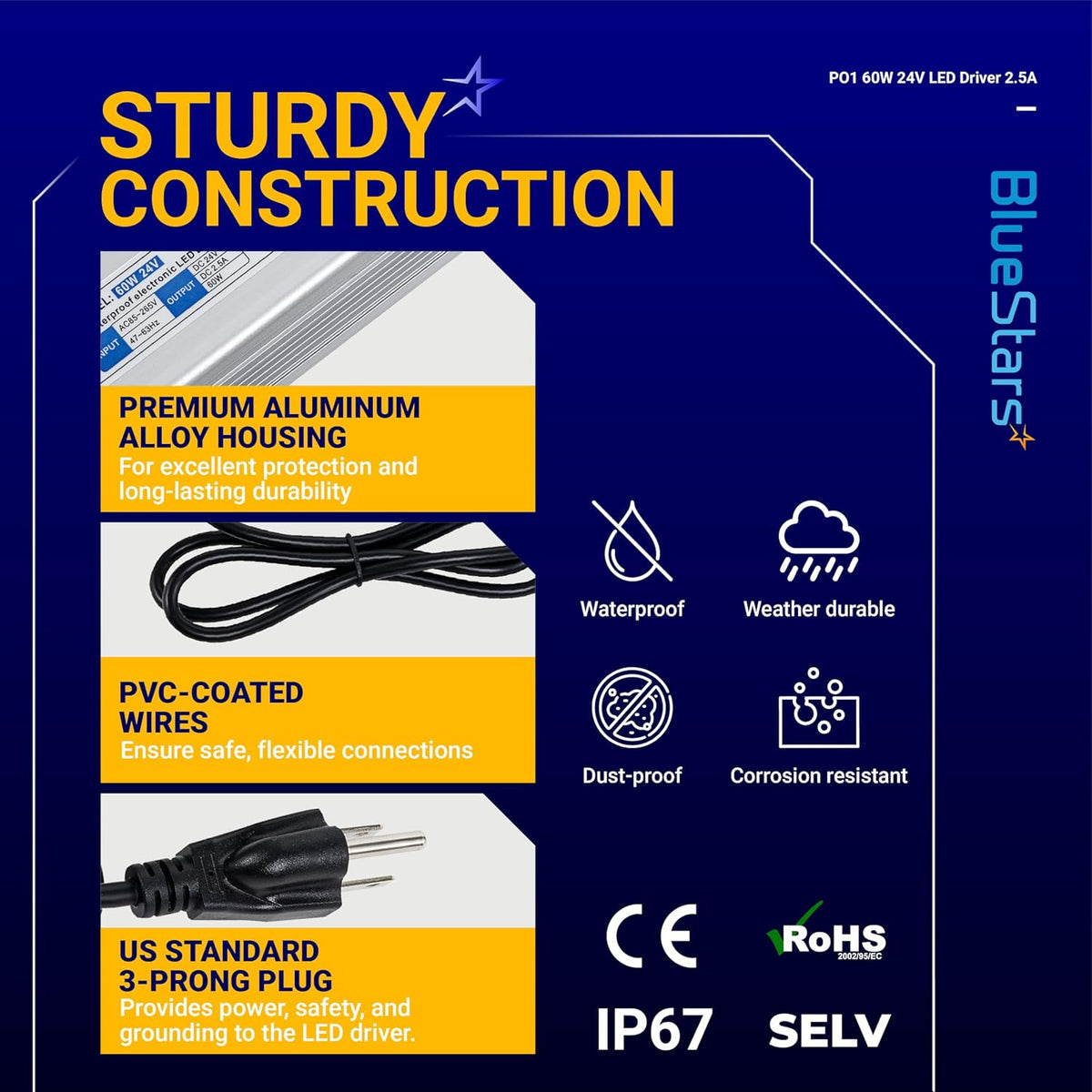

• Construction: Aluminum housing for heat dissipation
• Safety: Integrated protection for over-voltage, over-current, short-circuit, and over-temperature
• Input Connection: Corded with a standard US 3-prong plug
• Function: Non-dimmable

Replaces / Cross-Reference Part Numbers

• Model: SMV-60-24
• Replaces constant voltage 24V DC LED drivers with a power rating of 60W or less and a current draw of 2.5A or less.

Compatibility & Fitment

• Compatible with 24V DC LED lighting systems, including strip lights, modules, and light bars.
• Suitable for other low-voltage electronic applications requiring a constant 24V DC source up to 60W.
• Designed for use in both indoor and outdoor environments.

When to Replace

• LED lights flicker, strobe, or exhibit inconsistent brightness.
• Connected lights are dim or fail to turn on.
• Existing power supply overheats, emits a buzzing sound, or shows physical damage.
• Output voltage measures below or significantly above 24V DC under load.

Installation Tips

• Disconnect power at the source before beginning installation.
• Confirm the total wattage of your LED system does not exceed the 60W maximum rating. For optimal longevity, maintain a load of 80% (48W) or less.
• Connect the DC output wires to your LED application, ensuring correct polarity (+ to +, - to -).
• Provide adequate ventilation around the unit to allow for proper heat dissipation.
• While rated for outdoor use, avoid installation in a location of permanent water submersion.
